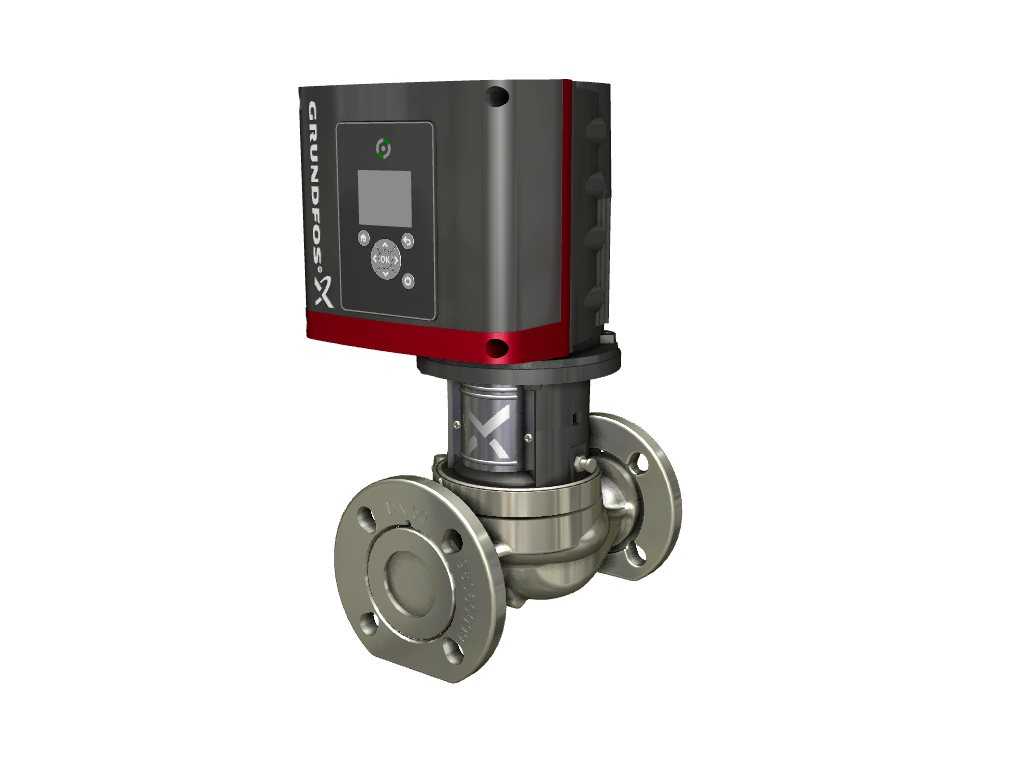

Grundfos TPE3 50-120-S A-F-I-BUBE (98416667)
Nom produit: 98416667
Demande Prix et disponibilité
Grundfos TPE3 50-120-S A-F-I-BUBE (98416667)
Grundfos TPE3 50-120-S A-F-I-BUBE (98416667)
| Specification | Value | |
|---|---|---|
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 0 .. 120 °C | |
| Liquid temperature during operation: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Speed for pump data: | 3430 rpm | |
| Rated flow: | 20.6 m³/h | |
| Rated head: | 7.7 m | |
| Primary shaft seal: | BUBE | |
| Curve tolerance: | ISO9906:2012 3B | |

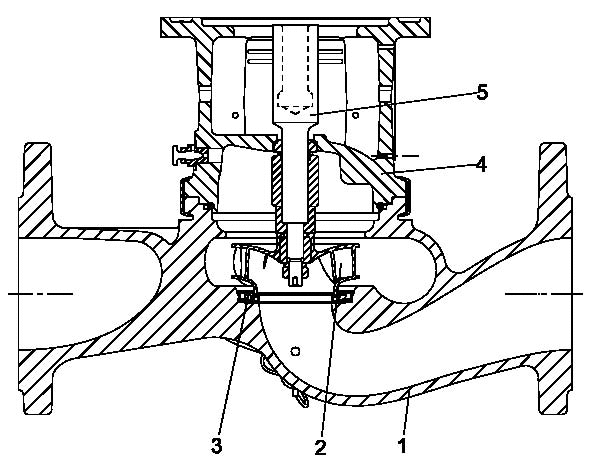

| Materials: | ||
| Pump housing: | Stainless steel | |
| DIN W.-Nr. 1.4308 | ||
| ASTM CF8 | ||
| Impeller: | Composite PES/PP 30% GF | |
| Installation: | ||
| Range of ambient temperature: | -20 .. 50 °C | |
| Maximum operating pressure: | 10 bar | |
| Flange standard: | DIN | |
| Pipe connection: | DN 50 | |
| Pressure rating: | PN 6/10 | |

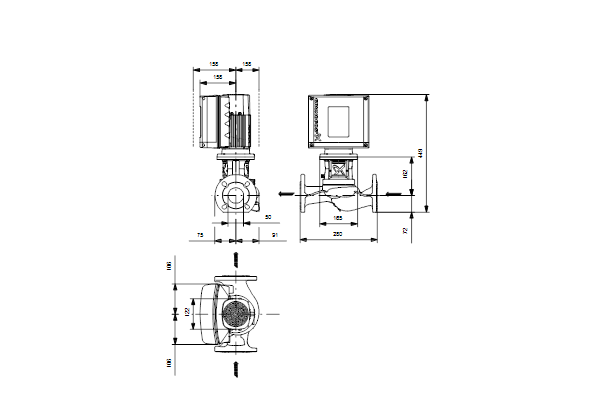

| Port-to-port length: | 280 mm | |
| Flange size for motor: | 56C | |
| Electrical data: | ||
| Motor type: | 71A | |
| IE Efficiency class: | IE5 | |
| Rated power - P2: | 0.55 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 1 x 200-240 V | |
| Rated current: | 3,45-2,90 A | |
| Cos phi - power factor: | 0,98 | |
| Rated speed: | 360-4000 rpm | |
| Efficiency: | 85,3% | |
| Enclosure class (IEC 34-5): | IP55 | |
| Insulation class (IEC 85): | F | |
| Others: | ||
| Minimum efficiency index, MEI �?�: | 0.7 | |
| ErP status: | EuP Standalone/Prod. | |
| Net weight: | 26.1 kg | |
| Gross weight: | 33.4 kg | |
| Shipping volume: | 0.1 m³ | |
