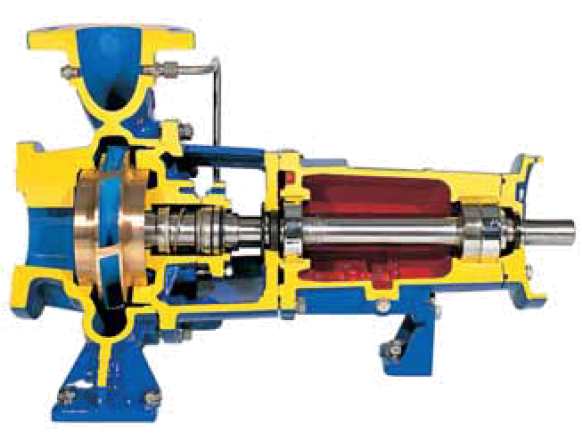

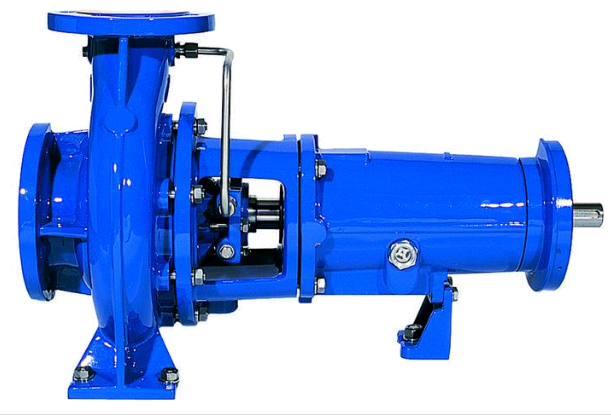

Lowara LC, LCP end suction pumps

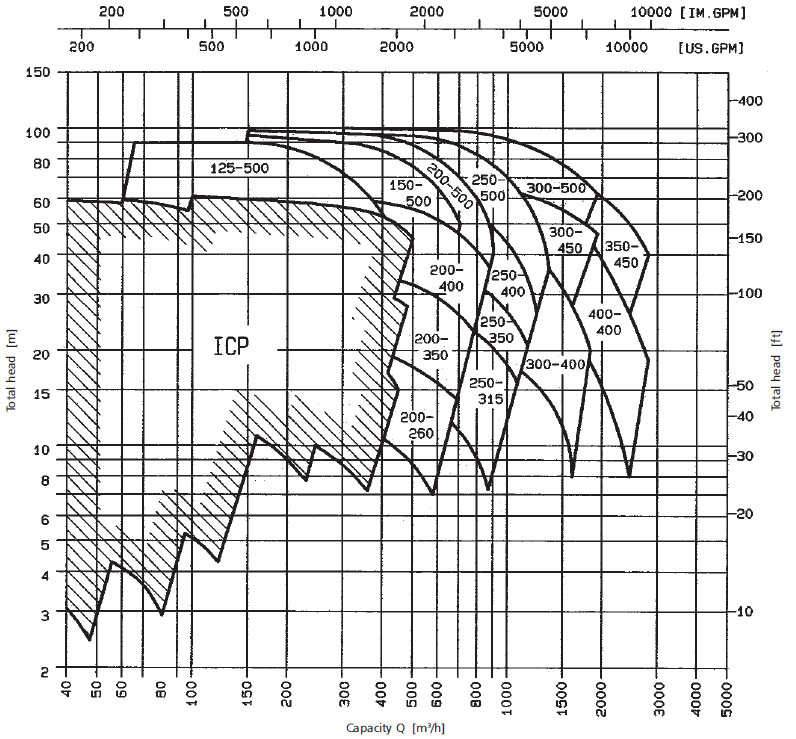

LC-LCP 750/950/1450 rpm 4 poles single operation

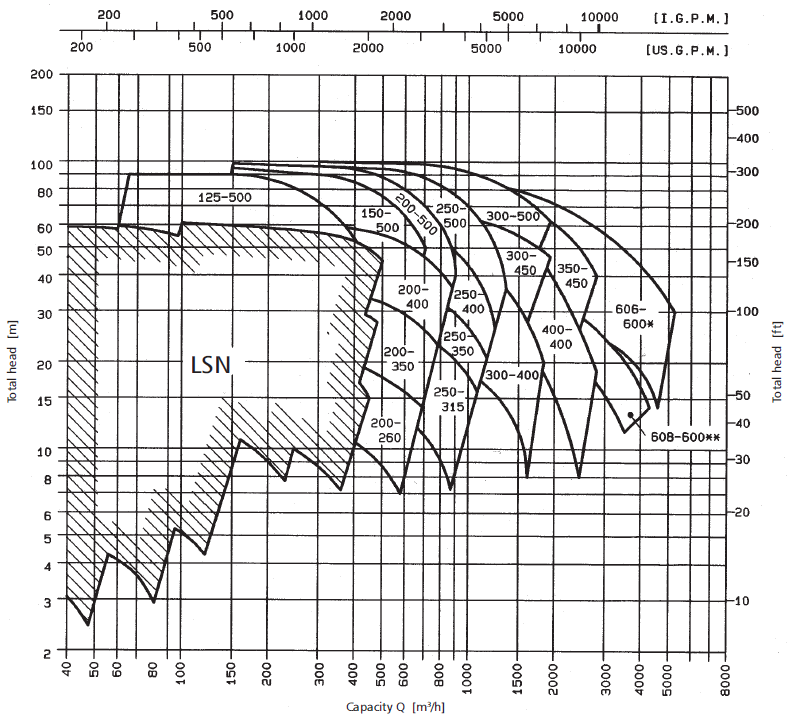

LS 750/950/1450 rpm 4 poles single operation
Specifications LC - LCP
Flow
Head up to
Range
Operating pressure
Ambient temperature
Liquid temperature
Power supply
Model
Insulation class
Enclosure class
max 2800 m³/h
max 100 m
0,75 - 37 kW
16 bar
0° - 40° C
max. +180° C - LC, +210° C - LCP
3~ 230 - 400V, 3 ~ 400 - 690V
end suction pump
F (155° C)
IP55
Specifications LS
Flow
Head up to
Range
Operating pressure
Ambient temperature
Liquid temperature
Power supply
Model
Insulation class
Enclosure class
max 4600 m³/h
max 170 m
0,25 - 22 kW
max 16 bar
0° - 40° C
max. +180° C
3~ 400V to 3kW, over 400 - 690V
end suction pump
F (155° C)
IP55
Materials
Pump body
Impeller
Elastomers
Mechanical seals
Cast iron
Stainless Steel, Bronze or Cast iron
EPDM
Silicon Carbide-Carbon
Identification
LCP 125-500 NL
LCP
125
500
NL
-
serial name
discharge port DN 125
500 = impeller full diameter mm
material impeller cast iron
material housing Ductile iron
Overview of all types LC-LCP series pumps
Datasheet 50Hz
