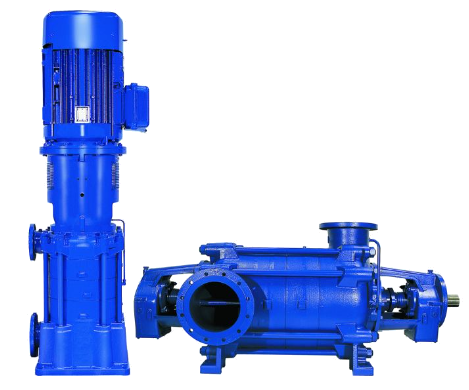

Lowara P, PVa, MP300 multistage pumps

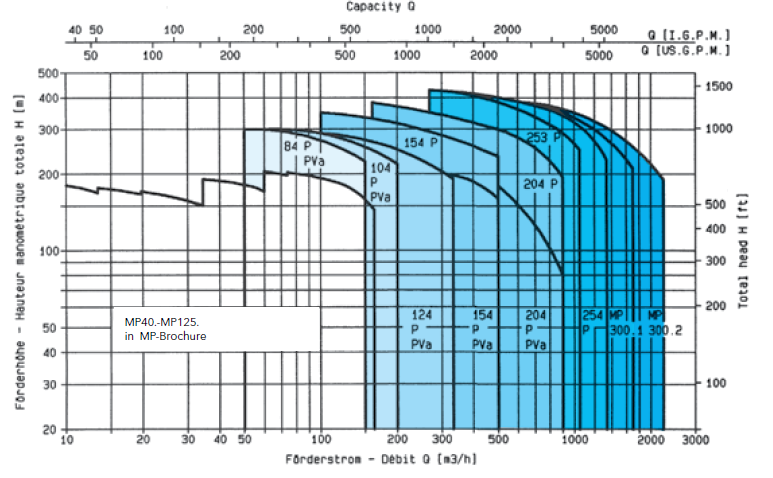

P, PVa, MP300 1450 rpm 4 poles motor

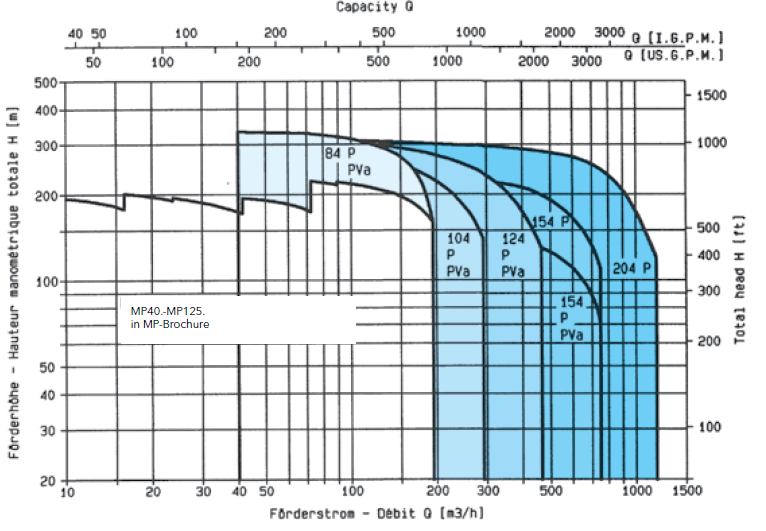

P, PVa, MP300 1750 rpm 4 poles motor
Specifications P - PVa - MP300
Flow
Head up to
Range
Operating pressure
Ambient temperature
Liquid temperature
Power supply
Model
Insulation class
Enclosure class
max 1800 m³/h
max 300 m
up to 315 kW
16 bar
0° - 40° C
max. +140° C
3 ~ 400 - 690V
multistage pump
F (155° C)
IP55
Materials
Pump body
Impeller
Elastomers
Mechanical seals
Cast iron
Stainless Steel, Bronze or Cast iron
EPDM
Silicon Carbide-Carbon
Identification
PVa 84/1-111-1854
PVa
84
1
111
185
4
-
serial name
number of stages
motor power kW = 18.5
4 pole motor
Overview of all types P-PVa-MP300 series pumps
Datasheet 50Hz
