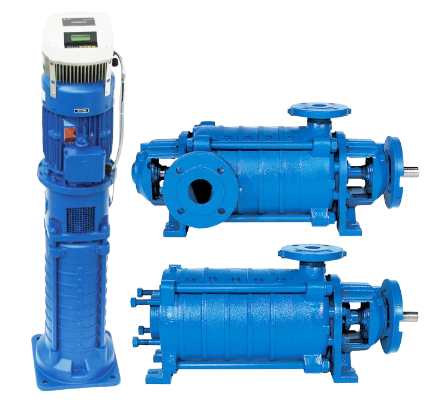

Lowara MP, MPA, MPB, MPV Multistage Pumps
Specifications MP
Flow
Head
Range
Operating pressure
Ambient temperature
Liquid temperature
Power supply
Model
Insulation class
Enclosure class
max 500 m³/h
max 150 m
0,75 - 37 kW (1.2 - 50 HP)
16/25 bar
0° - 40° C
-40° - +180° C
1~ 220 - 240V, 3~ 230 - 400V, 3 ~ 400 - 690V
horizontal multistage pump
F (155° C)
IP55
MPA

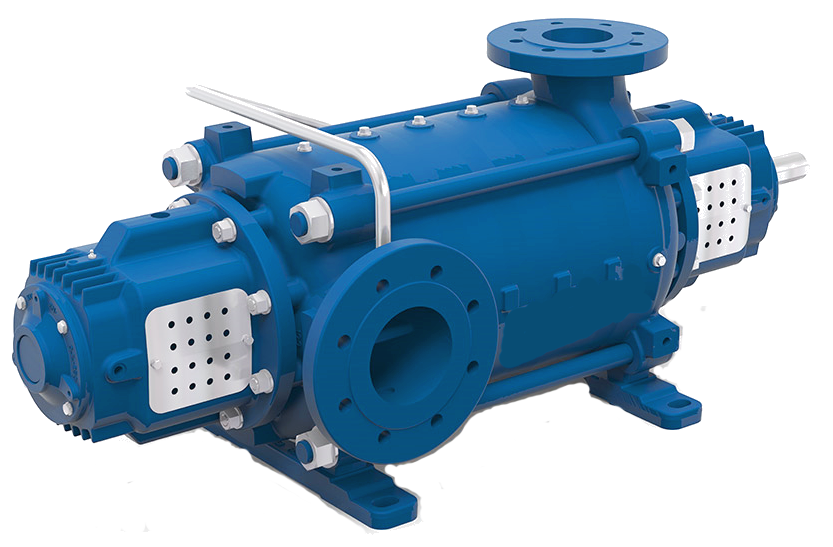

MPD

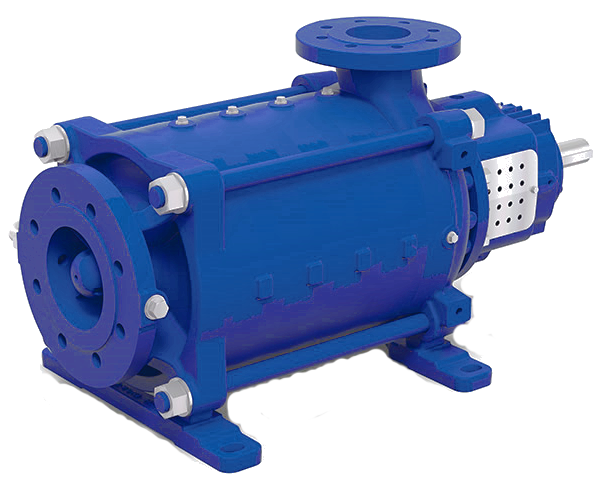

Specifications MPA
Flow
Head
Range
Operating pressure
Ambient temperature
Liquid temperature
Power supply
Model
Insulation class
Enclosure class
max 340 m³/h
max 500 m
0,25 - 7.5 kW
max 55 bar
0° - 40° C
-10° - +140° C
3~ 400V to 3kW, over 400 - 690V
horizontal multistage pump
F (155° C)
IP55
MPB

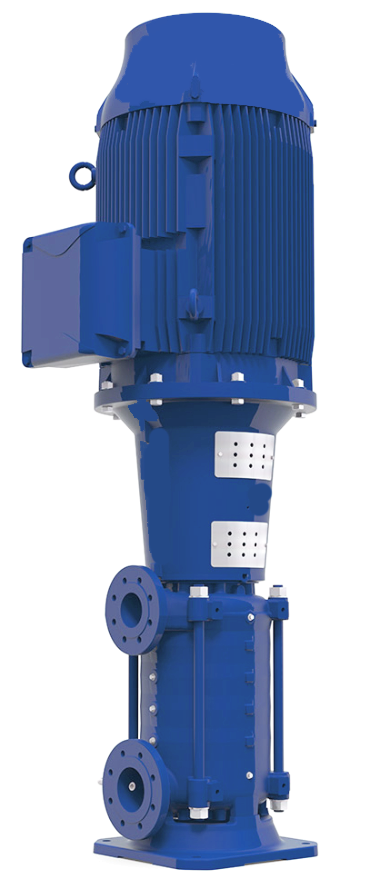

MPV

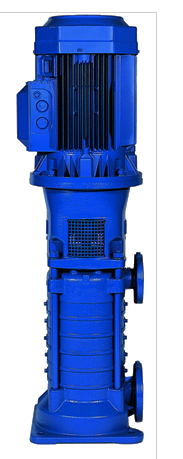

Specifications MPB, MPV
Flow
Head
Range
Operating pressure
Ambient temperature
Liquid temperature
Power supply
Model
Model optional
Insulation class
Enclosure class
max 340 m³/h
max 500 m
MPB - max 90 kW, MPV - 110 kW - 355 kW
max 55 bar
0° - 40° C
-10° - +140° C
3~ 400V to 3kW, over 400 - 690V
vertical multistage pump
MPBH with Hydrovar
F (155° C)
IP55
Materials
Pump body
Impeller
Elastomers
Mechanical seals
Cast iron
Stainless Steel or Cast iron
EPDM
Silicon Carbide-Carbon
Identification
MPA 100B/04A/BD 2000/W25VCCC4
MP
A
100B
04
A
B
D
2000
W
2
5V
C
C
C
4
-
serial name
A, R, D = horizontal - V = vertical
discharge port DN 100
04 = number of stages
A = impeller full diameter, other letter reduced size
A-10, B-16, C-25, D-40, E-63 bar, R-CL150, S-300 ASME suction
A-10, B-16, C-25, D-40, E-63 bar, R-CL150, S-300 ASME discharge
rated motor power kW x 10 = 200kW
motor type P = PLM, W = WEG, X = other
2 = 2 pole motor, 4 = 4 pole motor
5V = 3x380-415/660-690V, 50Hz
material housing C-Cast iron, D-ductile iron, F-cast steel, N-stainless steel R-duplex
material impeller C-cast iron, B-bronze, N-stainless steel, R-duplex, T-super duplex
material diffuser C-cast iron, N-stainless steel, R-duplex, T-super duplex
material mech seal 4-carbon/SiC/EPDM, 2-carbon/SiC/FKM, Z-SiC//SiC/EPDM, W-Sic/SiC/FPM
Overview of all types MP series pumps

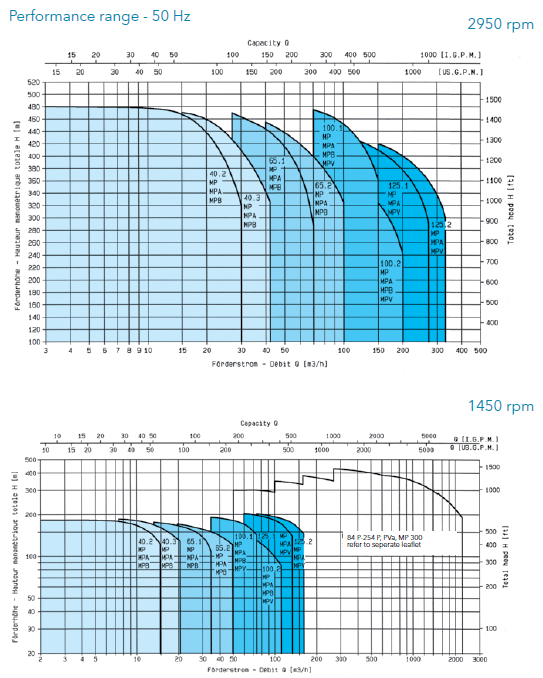

Datasheet 50Hz
