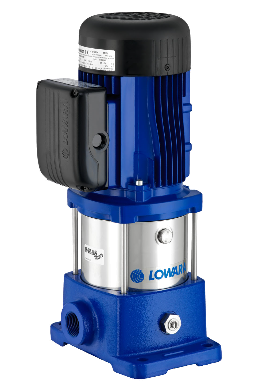

Lowara VM multistage Pumps
Specifications VM Series
Flow
Head up to
Power Range
Operating pressure
Ambient temperature
Liquid temperature
Power supply
Model
Insulation class
Enclosure class
max 14 m³/h
max 98 m
up to 3 kW
10 bar
0° - 40° C
max. +140° C
3 ~ 230-415V
multistage pump
F (155° C)
IP55
Materials
Pump body
Impeller
Elastomers
Mechanical seals
Stainless steel
Noryl
EPDM
Carbon
Identification
10 VM 05 P 30 T SR V B E
10
VM
05
P
30
T
SR
V
B
E
-
Flow rate m³/h = 10
serial name
number of impellers
Material pump P= stainless steel 304 + Noryl impellers
motor power kW x10 = 3 kW
M = single phase, T = 3 phase
Voltage range SR =3~ 240/380/415, SH =1~220-240V
Rotating part V = Aluminium oxide
Stationairy part B = Carbon resin impregnated
Elastomers E = EPDM

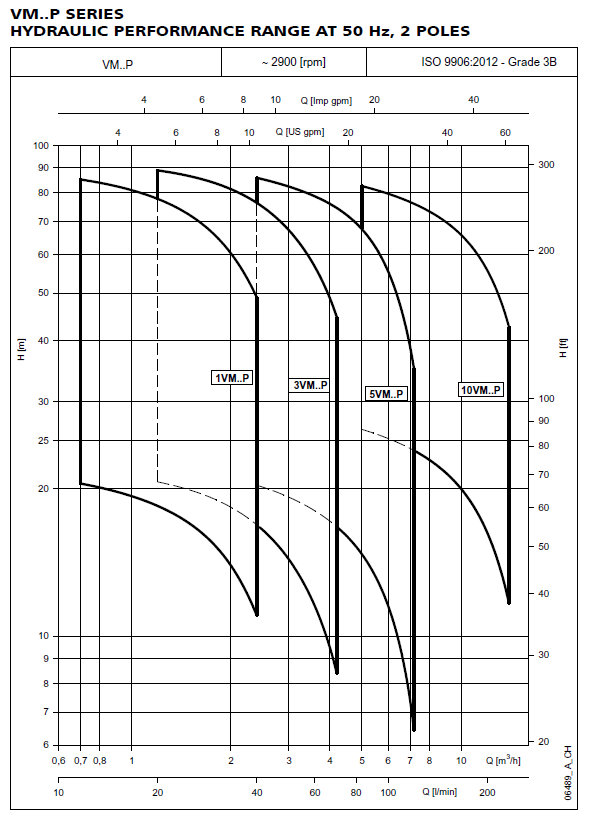

Overview of all types VM series pumps
Datasheet 50Hz
